1. Application

YGL-C150 Drilling Rig has been widely used in pipe sheds drilling of the tunnel construction; grouting reinforcing hole drilling; but also the drain hole and large tonnage prestressed anchoring hole of the geotechnical engineering, such as boreholes on side slopes of dams, railways, highways, etc; GSHPs hole and water well or water exploration hole.; and the drilling holes of landside preventing and the treatment engineering of rock collapse.

1. Feature
1. It has adopted top hydraulic rotary power head impact which is Germany imported, multi-angle drilling, and excellence performance.
2. The speed of borehole is faster than traditional machine.
3. It has no dull pollution and no need air-compressor when drill the incompact ground area, the gravel place and fragment rock stratum.
4. Special tube drilling technical. It can drilling fast and insure project firmly.
5. In complex condition, it can use double tube rotating drilling, in order to make hole stable and easy to slip casting.
6. The drilling rig can be applied for different technique methods and a variety of ground conditions. Especially in the difficult work condition, such as the incompact ground area, the gravel place, and the fragment rock stratum, this drilling can always provide the operator excellent solutions.

1. Specification

Hydraulic Crawler Drilling Rig		YGL- C 150
Total Weight	kg	7500
Length*Width*Height（Work Type）	mm	6100×2100×2350
Environmental Temperature	°C	-10～38

Nominal Borehole Depth	m	150～80
Borehole Diameter	mm	130～250
Hole Angle Range	°C	-90～15
Horizontal Drilling Range	mm	2050～3050

Impact on top of head configuration (Germany imported)		normal	?Rotary speed
Output SpeedⅠ	rpm	32	60
Output TorqueⅠ	N.m	9000	7500
Output SpeedⅡ	rpm	64	120
Output TorqueⅡ	N.m	4500	3500
Impact Hammer
Impact	N.m	400
Impact Frequency	Min-1	1800

Power Head
Feeding Stroke	mm	3500
Thrust Force	kN	45
Lifting Capacity	kN	60

Mast
Slide Stroke	mm	400
Swing angle of the mast	°	-30～90 or -90～30

Power Type		Cummins diesel engine
Power	kW	75
Rotate speed	rpm	2000
Fuel capacity	L	150

Crawler Chassis		PD135
Width of crawler chassis	mm	400
Ground pressure	MPa	＜0.05
Turning Range Of Platform	°	-30～右90 or -90～30
Climbing Ability	°	≤20



Optional Equipments:

1. Hydraulic winch
2. Mud pump or Centrifugal pump





**The company reserves the right to change the data and literature in this brochure without notice.

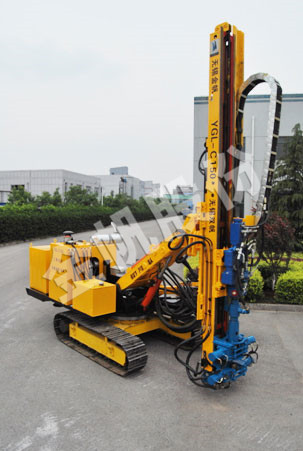

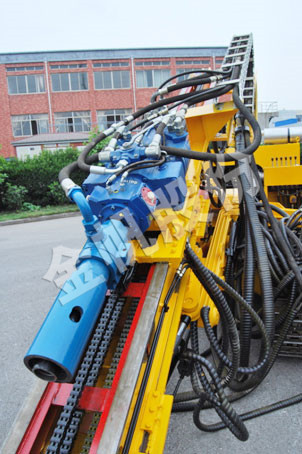

Vertical working condition Germany imported top hydraulic
rotary power head impact
