• Product images
• Product description

•

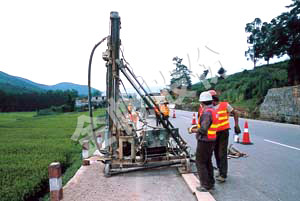

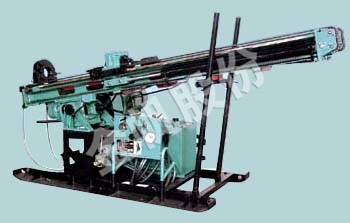

• Introduction The MG-50AX anchor bolt rotary spray engineering drilling rig is mainly used for anchoring deep foundation pits in high-rise buildings, strengthening roadbed and dam foundations, preventing landslides, rock collapse and other disaster remediation projects, as well as single pipe and double pipe rotary spray pile construction, engineering survey hole construction, and can also be used for construction of highway guardrails, electrical force engineering electrical line pole holes, and small water wells.

  Main features ● The drilling rig adopts mechanical transmission and hydraulic feeding, and is a mechanical powered head type drilling rig. Drilling can be carried out at any angle from vertical to horizontal, or at an elevation angle of around 5 degrees.
  ● The power head of the drilling rig provides a long progress, with two types of travel: 2300mm and 1800mm, which is beneficial for improving drilling efficiency.
  ● The drilling rig mainly uses impact rotary (DTH hammer drilling) and rotary drilling methods, as well as spiral drilling, which is suitable for a wide range of geological formations and has high drilling efficiency.

  Technical Parameter

  Borehole diameter	￠110-￠150mm
  Drill depth	50-60m
  Drill pipe specifications	Single tube ￥ 42-50mm double tube ￥ 60-73mm
  Drill pipe inclination angle	-5°-90°
  Power head output speed	Positive: 19, 38, 70120rpm Reverse: 16rpm
  Power head lifting force	Rated 24kN, up to 30kN
  Power head provides thrust	Rated 16kN, up to 21kN
  Power head stroke	2.3m or 1.8m optional
  Power head lifting speed	0-0.25m/s（adjustable）
  Rated output torque of power head	1500Nm
  Power machine (Electric machine or Firewood oil machine according to user requirements) Electric machine Model Y160L-6 power	11kw
  Drilling rig external dimensions (transportation status) length × wide × high	3400×1500×1500mm
  Net weight of drilling rig	950kg
