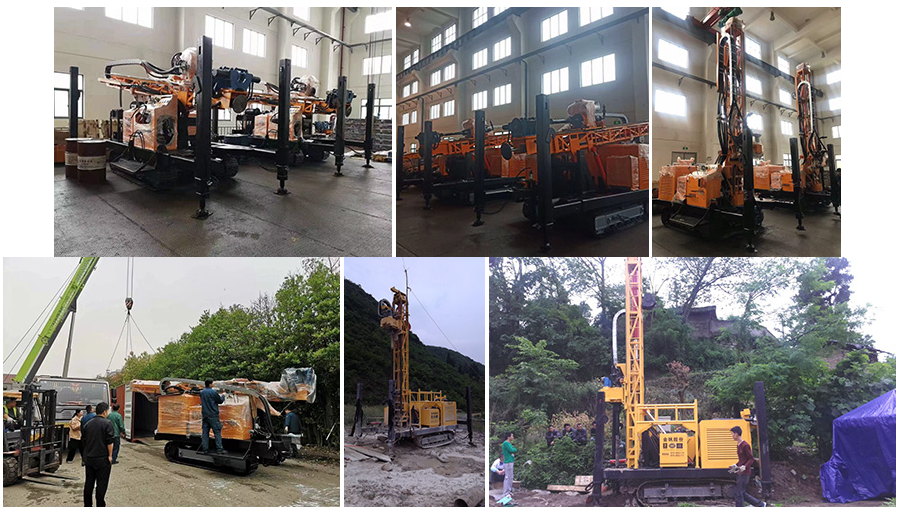

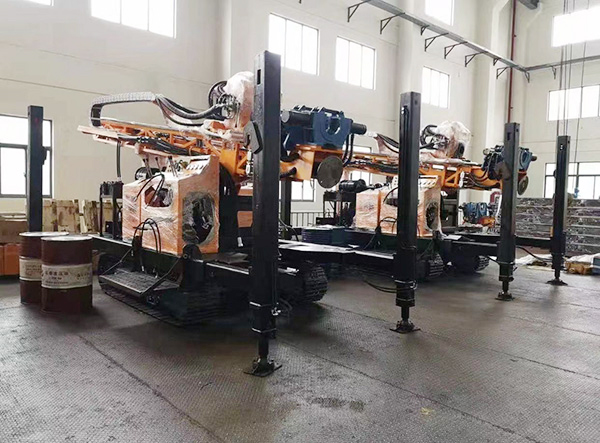

• Product images
• Product description

•












• Applications The YSL-300RC reverse circulation drilling rig is a tracked chassis loading, fully hydraulic driven, and power head drilling rig. It is a drilling equipment suitable for vertical or inclined drilling, and is suitable for the following process methods:
  Non circulating liquid spiral drilling (dry drilling)
  Air Downhole Hammer (Pneumatic Impactor) Drilling
  Mud positive circulation drilling
  Air Downhole Hammer and Pipe Drilling
  Multi medium reverse circulation drilling
  The drilling rig is suitable for different drilling techniques, so it has great adaptability to various formations and complex working conditions. It can effectively solve the problem of difficult drilling in loose cover formations, gravel layers, and fractured bedrock formations, and has a wide range of applications.
  The drilling rig is mainly suitable for the construction of RC reverse circulation/water well drilling, as well as the survey and construction of ground source heat pump holes and small foundation pile holes.



  ModelModel		YSL-300RC
  總重量 Drill rig weight(crawler mounted)	kg	8500
  長x寬x高（運輸狀態） Length × Width × Height (normal)	mm	6750×2300×3000
  環境溫度 Ambient Temperature Range	°C	-10～38
  名義鉆孔深度 Nominal Drill Depth	m	300
  Borehole diameter Drill Diameter	mm	130～350
  鉆桿動力頭Drill head output
  Output speed Output Rotation Speed	rpm	55,110
  輸出扭矩 Max Output Torque	N.m	10000
  動力頭給進Stroke of Power Head
  行程 Feeding	mm	3500
  給進力 Thrust Force	kN	100
  提拔力 Lifting Capacity	kN	150
  油泵Oil Pump
  油泵排量 Output volume	ml/r	63+63+25
  液壓油Hydraulic Oil		L-HM46
  油箱容積 Tank Capacity	L	220
  回油過濾精度（名義） Nominal Filtration Particle Size	μm	10
  動力機Engine drive type		6BTA5.9-C180
  功率 Power	kW	132
  轉速 Rotary Speed (Max.)	rpm	2200
  履帶底盤Track Chassis Base		PD135XB
  行走速度 Walk Speed	km/h	2.0
  接地比壓 Unit Pressure	MPa	＜0.05
  爬坡能力 Climb Ability	度	≤20
  液壓絞車Winch
  提升力 Lift Force	KN	11
