YGL-50(Q) Crawler Mini Drill

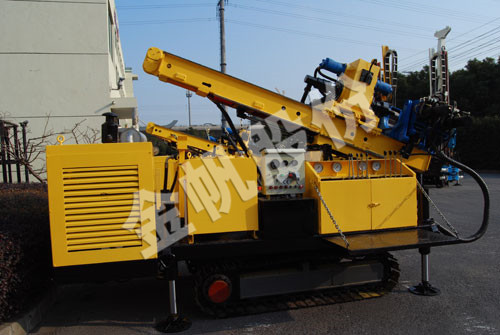

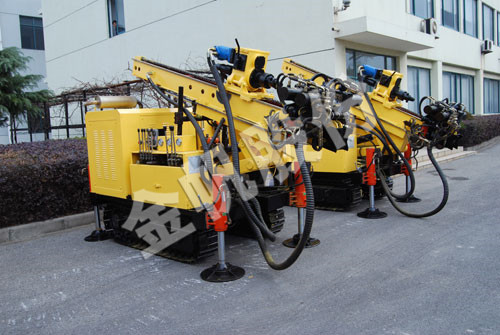

- Product images
- Product description
-
-
Introduction The YGL-50 (Q) tracked engineering drilling rig is a tracked chassis loading, fully hydraulic driven, and power head drilling rig. The drilling rig is mainly suitable for the construction of large tonnage prestressed anchor holes or drainage holes in geotechnical engineering such as water electricity station engineering, railways, highway slopes, etc., the construction of urban deep foundation pit support and foundation reinforcement engineering holes, and the construction of ground source heat pump holes; Also applicable for landslide and rock collapse prevention and control engineering; And also take into account the survey and construction of tunnel pipe shed support holes, grouting reinforcement holes, small foundation pile holes, and hydrological wells.
Main features
● The drilling rig has strong drilling ability, a wide range of applications, fast drilling speed, strong accident handling ability, and high drilling efficiency
● The output shaft of the drilling rig's power head is equipped with a telescopic mechanism, which can effectively protect the drilling tools
● The shifting mechanism of the drilling rig power head adopts a hydraulic transmission method, which has the characteristics of light, fast, convenient, and reliable shifting
● The drilling rig hole is equipped with a hydraulic clamping and unloading device for the drill rod, which reduces auxiliary time and reduces operational intensity
● The drilling rig hole is equipped with a hydraulic clamping and unloading device for the drill rod, which reduces auxiliary time and operational strength. The drilling rig is loaded on the track chassis, making the whole machine shift and walking faster and more convenient
● The main components of the hydraulic system of the drilling rig are all made of well-known domestic and foreign products, ensuring stable and reliable performance and long service life of the entire machine
● The main components of the hydraulic system of the drilling rig are all made of well-known domestic and foreign products, ensuring stable and reliable performance and long service life of the entire machine. The drilling rig can be applied to various drilling techniques, such as alloy rotary drilling, spiral drilling, pneumatic down-the-hole hammer drilling, etc
● The drilling rig has a small volume and light weight, which can solve construction problems in narrow areas
● The drilling rig has added a lifting arm function, which can adjust the height and angle horizontally up and down, enabling quick hole alignment and reducing auxiliary time
Technical Parameter
|
Borehole depth(m)
|
50
|
|
Borehole diameter(mm)
|
Ф50～200
|
|
Drill pipe inclination angle(mm)
|
5~90°
|
|
Horizontal hole height(m)
|
|
|
Output speed rpm
|
40；80
|
|
High output torque Nm
|
2500
|
|
Provide progress mm
|
1800/2300
|
|
Large feeding/pulling force kN
|
15/30
|
|
Power machine model
|
Firewood
|
ZN485Q
|
|
Electricity
|
|
|
Input power
|
Firewood
|
26/2200
|
|
Electricity
|
|
|
Chassis Model
|
PD101A
|
|
Overall Dimension(m)
|
3850*1450*2000
|
|
Drill weight(kg)
|
2500
|
